M42 HIGH SPEED STEEL (1.3247)

Material available in round and flat sections

M42 High Speed Steel (1.3247) is a highly cobalt alloyed High-Speed Steel to be used when the demand for hot hardness is of great importance. M42 High Speed Steel (1.3247) has a good machinability and a good wear resistance.

Applications

For use on:

Physical Properties

Temperature	20°C	400°C	600°C
Density g/cm3	8	7.9	7.9
Modulus of elasticity kN/mm²	225	200	180
Thermal expansion ratio per °C	-	11.5x10 -6	11.8x10 -6
Thermal conductivity W/m°C	24	28	27
Speciﬁc heat J/kg°C	420	510	600

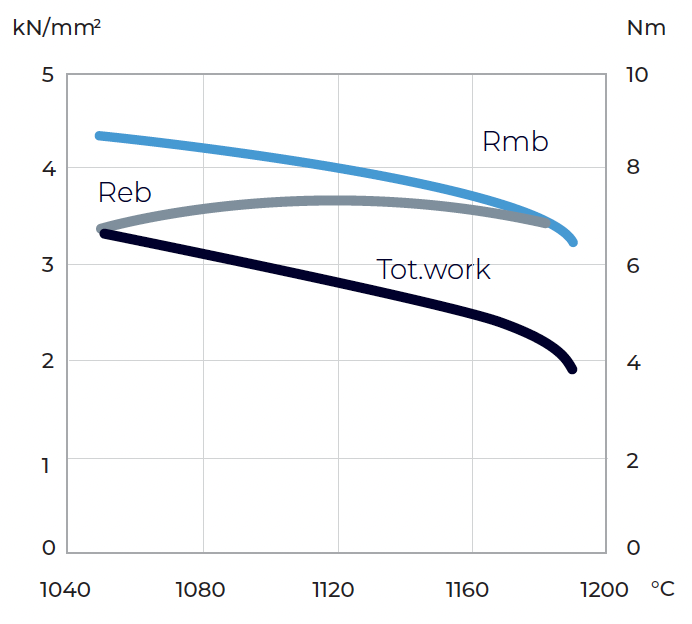

4-Point Bend Strength

Hardening temperature in °C

Tempering 3 x 1 hour at 560°C

Dimension of test piece Ø 4.7 mm

Rmb = Ultimate bend strength in kN/mm²

Reb = Bend yield strength in kN/mm²

Tot. work = Total work in Nm

Heat Treatment

Soft annealing in a protective atmosphere at 850-900°C for 3 hours, followed by slow cooling 10°C per hour down to 700°C, then air cooling.
Stress-relieving at 600°C to 700°C for approximately 2 hours, slow cooling down to 500°C.
Hardening in a protective atmosphere with pre-heating in 2 steps at 450-500°C and 850-900°C and austenitizing at a temperature suitable for chosen working hardness.
Tempering at 560°C three times for at least 1 hour each time.

Surface Treatment

The steel grade is a perfect substrate material for PVD coating. If nitriding is requested, a small diffusion zone is recommended but avoid compound and oxidized layers.

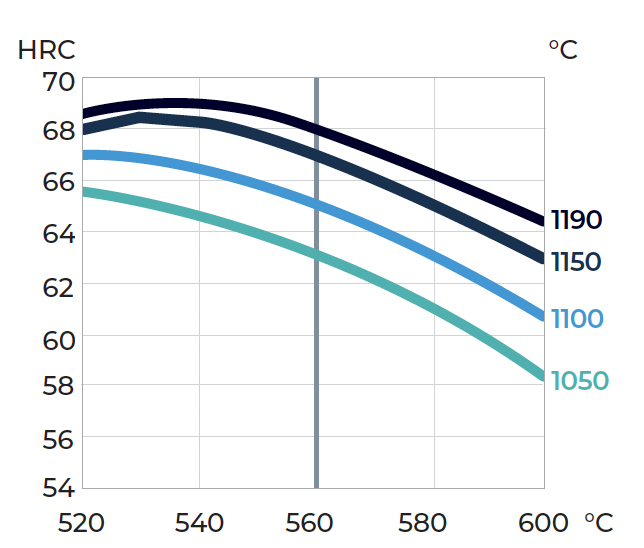

Guidelines For Hardening

Tempering temperature in °C

Hardness after hardening, quenching and tempering 3 x 1 hour

Tool	Hardening	Tempering
Single-edge cutting tools	1190°C	560°C
Multi-edge cutting tools	1150-1180°C	550-570°C
Cold work tools	1050-1150°C	550-570°C
