ASP® 2055 Powder Metallurgy High-Speed Steel

Material available in round and flat sections

ASP 2055 is a high alloyed PM-HSS grade for high demanding cutting and cold work applications in which high performance and good grindability are important.

Applications

Physical Properties

Temperature	20°C	400°C	600°C
Density g/cm3	8	7.9	7.9
Modulus of elasticity kN/mm²	240	214	192
Thermal expansion ratio per °C	-	11.8x10 -6	12.3x10 -6
Thermal conductivity W/m°C	24	28	27
Speciﬁc heat J/kg°C	420	510	600

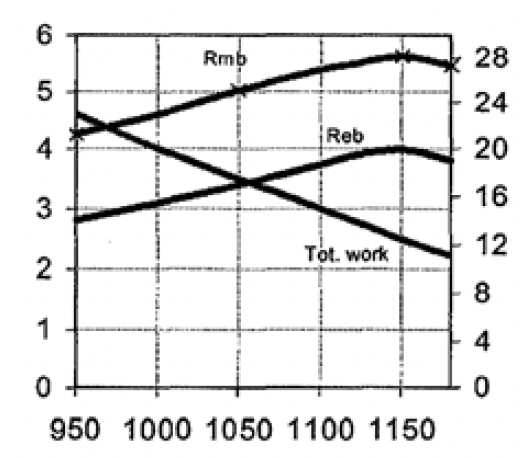

4-Point Bend Strength

Tempering 2 x 1 hour at 560°C

Dimension of test piece Ø 4.7 mm

Rmb = Ultimate bend strength in kN/mm²

Reb = Bend yield strength in kN/mm²

Tot. work = Total work in Nm

Heat Treatment

Soft annealing in a protective atmosphere at 850-900°C for 3 hours. followed by slow cooling at 10°C/h down to 700°C. then air cooling.
Stress-relieving at 600°C to 700°C for approximately 2 hours, slow cooling down to 500°C.
Hardening in a protective atmosphere with pre-heating in 2 steps at 450-500°C and 850-900°C and austenitising at a temperature suitable for chosen working hardness.
Tempering at 560°C three times for at least l hour each time. Cooling to room temperature (25°C) between tempering.

Surface Treatment

The steel grade is. a good substrate material for PVD and CVD coating. If nitriding is requested, a small zone of 2-15 um is recommended. The steel grade can also be steam-tempered if so desired.

Guidelines For Hardening

Tempering temperature in °C

Hardness after hardening, quenching and tempering 3 x 1 hour
